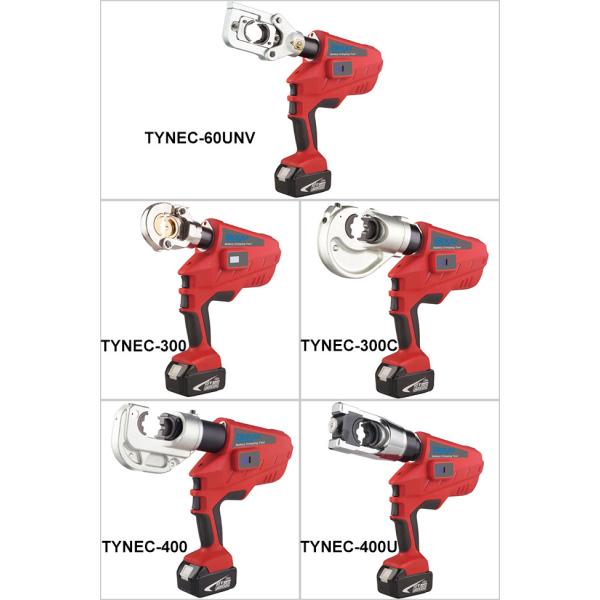

Electric 60KN Hydraulic Battery Crimping Tool For Cu / Al Cable And Armoured Cable

Brand Name : Boyu

Model Number : TYNEC-60UNV

Certification : ISO9001

Place of Origin : China

MOQ : 20 pieces

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 5000sets/month.

Delivery Time : 15~25 days

Packaging Details : Container

Crimping force : 60KN

Crimping die : 16.25.35.50.70.95.120.150.185.240.300mm2

Stroke : 42mm

Voltage : 18V

Working cycle : 3-16s

Crimp/charge : 160times

Punching range : 22.5-61.5

Type : Electric Hydraulic Battery Crimping Tool

Contact Now

Electric Hydraulic Battery Crimping Tool For Cu/Al Cable And Armoured Cable

Technical Data

Model TYNEC-60UNV
Crimping force 60KN
Stroke 42mm
Crimping range 16-300mm2
Cutting range 40mm Cu/Al cable and armoured cable
Punching range 22.5-61.5
Crimp/charge 160times
Working cycle 3-16s
Voltage 18V
Capacity 3.0Ah
Charging time 45minutes
Package Plastic case
Crimping die 16.25.35.50.70.95.120.150.185.240.300mm2
Punching & Die 22.5,28.3,34.6,43.2,49.6,61.5mm
Blade 1set
Adapter for crimping 1pc
Adapter for punching 1pc
3/4" Draw stud/7/16"Draw stud 1pc
Spacer 1pc
Battery 2pcs
Charger 1pc(AC110-240V,50-60Hz)
Sealing ring of cylinder 1set
Sealing ring of safety valve 1set

General features:

A Temperature sensor makes the tool stop working automatically when the temperature over 60℃ under long time working, the fault signal sounds, it means the tool can’t continue work until the temperature reduced to the normal.

The hydraulic unit incorporates an automatic retraction which returns the piston into its starting position when the maximum operating pressure is reached.
The unit is equipped with a double piston pump which is characterized by a rapid approach of the dies forwards the connector and a slow crimping motion.
The crimping head can be smoothly turned by 360° around the longitudinal axis in order to gain better access to tight corners and other difficult working areas.
Li-ion batteries do neither have a memory effect nor self discharge. Even after long periods of non operation the tool is always ready to operate. In addition we see a lower power weight ratio with 50% more capacity and shorter charging cycles compare to NiMH batteries.
A manual retraction allows the user to return the piston into the starting position in case of an incorrect crimp. The unit is equipped with a special brake when stops the forward motion of the piston & die when the trigger is released.

Technical Data

Model TYNEC-300 TYNEC-300C TYNEC-400 TYNEC-400U
Crimping force 60KN 120KN 130KN 130KN
Crimping range 16-300mm2 16-300mm2 16-400mm2 16-400mm2
Stroke 17mm 32mm 42mm 20mm
Crimp/charge

320times

(Cu150mm2)

320times

(Cu150mm2)

120times

(Cu150mm2)

120times

(Cu150mm2)
Crimping cycle

3-6s

(depend on the size of cable)

3-6s

(depend on the size of cable)

10-20s

(depend on the size of cable)

10-20s

(depend on the size of cable)
Voltage 18V 18V 18V 18V
Capacity 3.0Ah 3.0Ah 3.0Ah 3.0Ah
Charging time 45minutes 45minutes 45minutes 45minutes
Package Plastic case Plastic case Plastic case Plastic case
Crimping die 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300mm2 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300mm2 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400mm2 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400mm2
Battery 2pcs 2pcs 2pcs 2pcs
Charger

1pc

(AC110-240V,50-60Hz)

1pc

(AC110-240V,50-60Hz)

1pc

(AC110-240V,50-60Hz)

1pc

(AC110-240V,50-60Hz)
Sealing ring of cylinder 1set 1set 1set 1set
Sealing ring of safety valve 1set 1set 1set 1set
