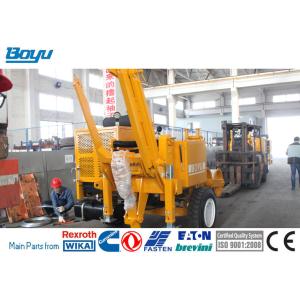

Stringing Equipment Hydraulic Cable Puller For Transmission Line Max Speed 5km/H

Product Categories

Yixing Boyu Electric Power Machinery Co.,LTD

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Stringing Equipment Hydraulic Cable Puller For Transmission Line Max Speed 5kmH
Brand: Boyu
Price: 1 USD

Brand Name : Boyu

Model Number : TY90

Certification : ISO

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 100sets/month.

Delivery Time : 15~25 days

Packaging Details : Container

Type : Stringing Equipment TY90 Hydraulic Puller

Engine : Cummins

Tail bracket hoisting motor : American Eton

Speed reducer : German Rexroth

Groove number : 8

Diesel : 118kw(158hp) Euro II, 4-stroke cycle, turbo-charged

Contact Now

Stringing Equipment Hydraulic Puller For Transmission Line Max Speed 5km/h

Characteristics
Groove number	8
Bull-wheel diameter	540mm
Max rope diameter	21mm
Total weight	4350kg
Max diameter of rope reel	1400mm
Overall dimension (lengthwidthheight)	4500×2100×2450mm

Hydraulic Transmission	Closed hydraulic circuit for step less speed variation in both rotating directions.
	This machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.

Engine
Diesel	118kw(158hp) Euro II, 4-stroke cycle, turbo-charged
Cooling system	liquid
Electrical system	24V

Configuration	Control instruments for hydraulic system and diesel engine
	Hydraulic front stabilizer
	Hydraulic dynamometer with set-point and automatic control of maximum pull
	Grounding connection point
	On board reel winder with automatic level wind, suitable for standard reel mod. 1100 and 1400
	Hydraulic oil cooling system

Additional Devices	Lighting system for the trailer
	Hydraulic rope clamp for reel change
	Digital speed and meter counter (extra charge)
	Swivel guide rope roller
	Trailer for towing at max speed of 30 km/h
	Extra shaft

Additional Devices	The chassis provided with Brake, back lights and mudguard, with a single point lift to allow lifting with a crane.
	Hydraulic system for drum stand control with flat face quick action couplings
	Lockable toolbox, Holding fixture for hose kit, Grounding plate, Acoustic insulation
	Cable and radio remote control fully replacing all controls at machine panel.
	Auxiliary Hydraulic system (700/1000 bar) for power pressing tool
	Remote diagnosis via GSM network with GPS modem, Synchronization system
	Biodegradable hydraulic oil, Allowable tension indictor, Overload tension alarm, First Aid Kit
	Manufacturer's recommended tools.
	Manufacturer's workshop maintenance manual, in English
	Manufacturer's routine spares for five years' duty (filters, bulbs, etc.).
